Python Figures & Data Analysis

Scriptora AI includes a Python execution sandbox — a secure Docker container with a full scientific Python stack. Ask the AI to run code, and the resulting figures appear directly in the chat for your review before being added to your paper.

Available libraries

Generating a chart

Simply describe what you want in the chat:

Plot a learning curve showing training and validation loss over 50 epochs.
The training loss decreases from 0.95 to 0.12, and validation loss from 0.98 to 0.21.
Use a clean academic style.

The AI will:

1. Write the Python code
2. Execute it in the secure sandbox
3. Show the chart inline in the chat — you can review it before it's added to your paper
4. Save it as figures/loss_curve.png in your workspace
5. Optionally insert the \includegraphics command into main.tex

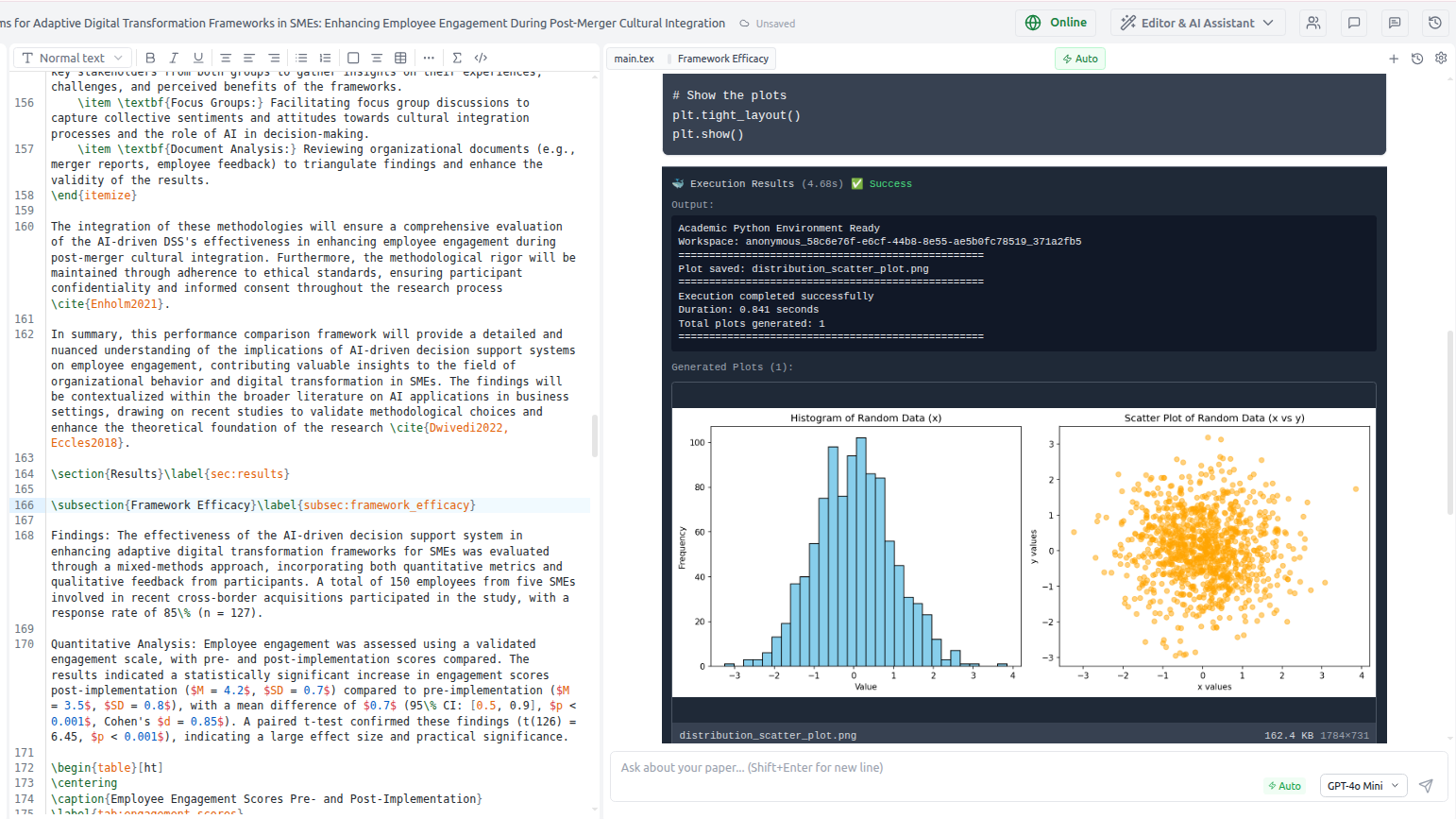

Reviewing figures in chat

When a figure is generated, it appears as an image card below the tool card:

• Click the image to expand it to full height
• ⤢ Expand toggle to see more detail
• ↓ Download to save locally
• ↗ Open to view full-size in a new tab

You can then give feedback:

The font is too small and I'd like the colors to be colorblind-safe.
Also change "Training" to "Train loss" in the legend.

The AI regenerates the figure based on your feedback.

Workflow: figure in the paper

Graphviz flowcharts and DAGs

For architecture diagrams and flowcharts, graphviz produces clean vector SVG output:

Create a system architecture diagram showing: Data Collection → Preprocessing →
Feature Extraction → Model Training → Evaluation.
Use a left-to-right layout with blue boxes.

The AI uses the render_diagram() helper:

import graphviz as gv
dot = gv.Digraph(graph_attr={'rankdir': 'LR', 'bgcolor': 'white'})
dot.attr('node', shape='box', style='filled', fillcolor='#dbeafe', fontname='Helvetica')
dot.node('A', 'Data Collection')
dot.node('B', 'Preprocessing')
dot.node('C', 'Feature Extraction')
dot.node('D', 'Model Training')
dot.node('E', 'Evaluation')
dot.edges(['AB', 'BC', 'CD', 'DE'])
render_diagram(dot, 'pipeline', fmt='svg')

The resulting .svg is saved to figures/pipeline.svg and can be included in LaTeX with \includegraphics{figures/pipeline}.

LaTeX tables from data

The AI can compute statistics and generate properly formatted LaTeX tables:

Analyze this data and create a LaTeX table with mean, std, and 95% CI
for each group: Group A: [82, 85, 79, 88, 91], Group B: [71, 74, 68, 77, 73]

The AI returns a ready-to-paste tabular environment.

Statistical analysis

Run significance tests and other computations:

Perform a two-sample t-test between these two groups and report the
t-statistic, p-value, and confidence interval.
Group 1: [45.2, 47.8, 43.1, 48.9, 46.5]
Group 2: [38.4, 41.2, 39.7, 42.1, 40.8]

The output is reported as text (not an image) that you can paste directly into your Results section.

Security and limits

• Network disabled: the sandbox has no internet access
• Timeout: 60 seconds per execution
• Memory: 1 GB RAM limit
• Storage: figures are automatically cleaned up after saving to your workspace
